| The following cores are used for
interfacing to Memory. |
|
|
|
|
| rtf6829 |
Similar to the 6829 MMU
more |
rtf6829.v |
|
|
|
|
MemoryBusMux |
7 Channel
multiplexer
more |
|
|
|
|
|
MemoryBusArbitrator |
7 Channel arbitrator
more |
|
|
|
|
|

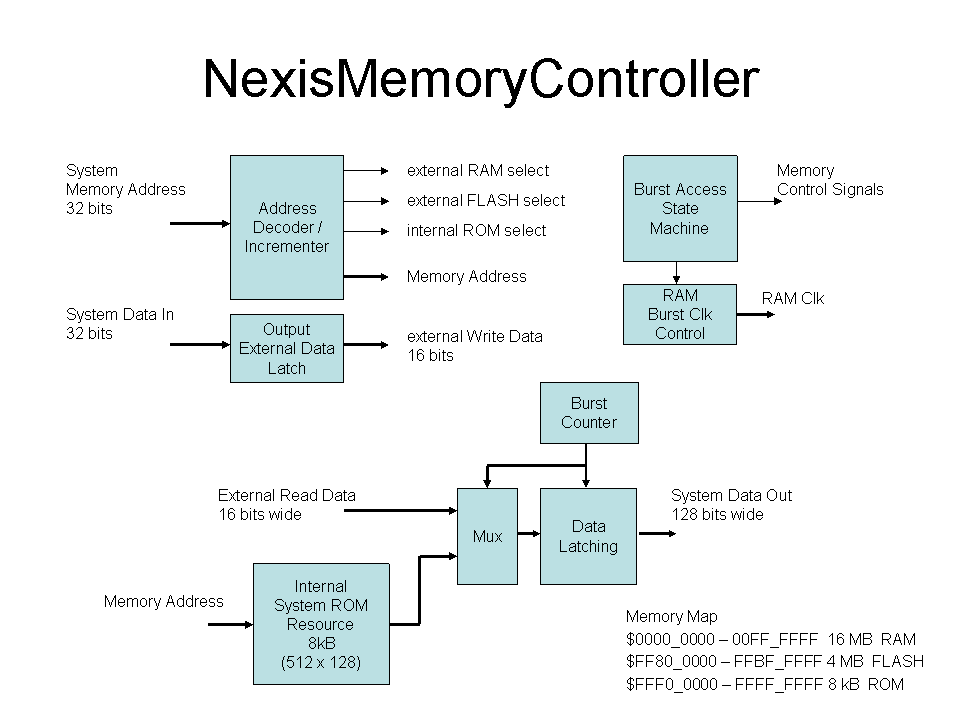

NexisMemoryController |
Controls
memory resources
RAM /
FLASH / ROM more |
|
|
|
|
|
ReservedAddressController |
Controls address reservation, release and conditional
writes |
|
|
|
|
|

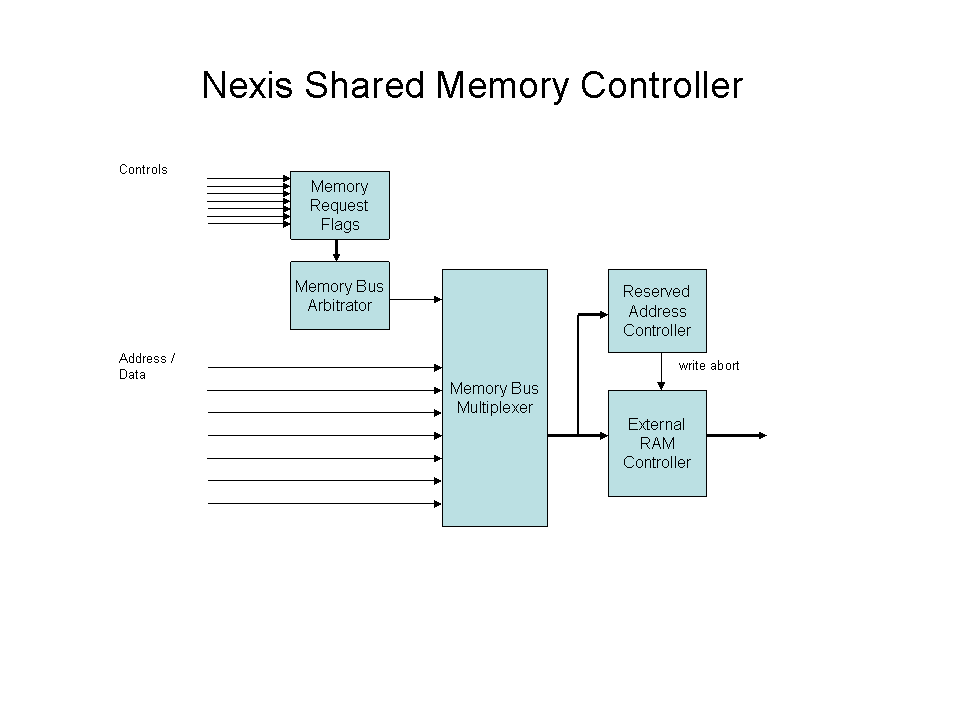

NexisSharedMemoryController |
7 Channel Memory Controller
more |
|
|
|
|
|
|
|
|
|
|
|
|
VT612 74LS612 similar memory
mapper.
Maps four bit address space into a twelve bit
address space, extending the space by eight whole bits ! |
VT612.v |
|
|
|
|
|
|
|
|
|
|
|
